Broadcom SAS 9211-4i
Internal storage connectivity and integrated RAID for small to mid-sized applications
Sorry, this product is no longer available, please contact us for a replacement.

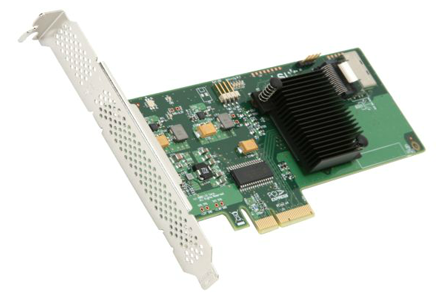

The Broadcom SAS 9211-4i, host bus adapter provides high performance for internal drive connectivity in 1U and 2U servers and workstations. The SAS 9211-4i provides 4 lanes of 6Gb/s SAS and is matched with 4 lanes of PCI Express (PCIe) 2.0 5Gb/s performance to eliminate bottlenecks. Performance is based on the SAS 2004 IO controller that highly integrates the latest enhancements in PCIe and SAS technoogy. The HBA supports up to 256 SAS or SATA devices.
The SAS 9211-4i has one (x4) internal mini-SAS connector (SFF8087) enabling a low profile solution which provides SAS and SATA data transfer rates of 1.5, 3 and 6Gb/s per lane through automatic speed negotiation that can achieve over 160,000 IOPs. Enhanced features include T-10 Protection Information Model for early detection of and recovery from data corruption,and Spread Spectrum Clocking (SSC) for minimal EMI.
Storage by LSI
Broadcom products serve four primary target markets: wireless communications, wired infrastructure, enterprise storage, and industrial. Broadcom Storage by LSI offers the industry’s broadest portfolio of storage solutions, backed by decades of experience and trusted by the world’s leading server and storage suppliers. Broadcom provides the building blocks for storage solutions that help customers understand, prioritize, store and protect critical data.
The Broadcom SAS portfolio includes MegaRAID® controller cards, host bus adapters (HBAs), advanced software options, Syncro® shared DAS solutions and SAS storage ICs, including RAIDon- Chip (ROCs), I/O controllers and expanders.
Fusion-MPT architecture marks the next generation of I/O architecture designed to deliver the highest performance available today while reducing time to market, integration, and certification time. Fusion-MPT devices are high performance, cost-effective protocol controllers that represent the newest system- level integration technology in intelligent I/O processors from Broadcom.
Features and Benefits:
- 4 internal 6Gb/s SAS+SATA ports
- 4 lanes, PCIe 2.0
- Low profile form factor design
- One x4 internal mini-SAS connector (SFF8087)
- SAS 2004 6Gb/s SAS+SATA Controller
- Supports up to 256 SAS or SATA end devices
- Supports SSDs, HDDs and tape drives
- Offers Integrated RAID (0, 1, 1E and 10)
- Provides state of the art connectivity for entry level servers with internal storage
- 4 lanes of PCIe 2.0 provides fast signaling for high-bandwidth applications
- High performance with 6Gb/s data transfer rates
|SAS 9211-8i Host Bus Adapter|
|I/O Controller||SAS2004/ Fusion MPT 2.0|
|Storage Connectivity ; Data Transfer Rates||4 ports; 6Gb/s SAS 2.0 compliant|
|SAS Bandwidth||Half Duplex
600 MB/s per lane
|Port Configurations||4 ea, x1 ports (individual drives)
1 ea, x4 wide port
|Host Bus||x4 lane, PCI Express 2.0 compliant|
|PCI Data Burst Transfer Rates||Half Duplex
X4, PCIe 2000 MB/s
|Physical Dimensions||Low Profile (2.7” x 6.6”)|
|Connectors||One x4 Mini-SAS SFF8087 internal connector|
|Brackets||Full height and low profile|
|Cable Support||Passive Copper|
|Host Bus Type||x4 lane, PCI Express 2.0|
|PCI Card Type||3.3 V Add-in Card|
|Operating Voltage||+12V +/-8%; 3.3V +/-8%|
|PCI Power (Nominal)||7W typical (Airflow min 200 LFM)|
|Device Support||256 Non-RAID SAS/SATA devices|
|Integrated RAID (IR)||14 Spread across 2 volumes|
|RAID 0:||10 per volume|
|RAID 1:||2 per volume plus hot spare|
|RAID 1E:||10 per volume|
|RAID 10:||10 per volume|
|0°C to 55°C
5 to 90% Non-condensing
|-45°C to 105°C
5 to 90% Non-condensing
|Regulatory Certifications||EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
|OS Support||Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware
See http://www.lsi.com/support/pages/download-search.aspx for details on versions
|Warranty||3 years; with advanced replacement option
Free technical support at http://www.lsi.com/support
Download the Broadcom SAS 9211-4i Product Brief (PDF).
