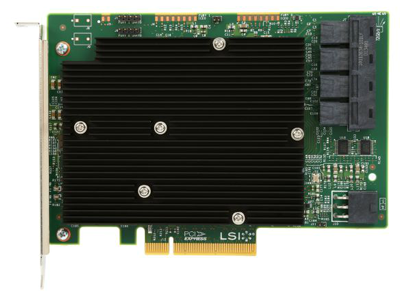

SAS 9300-16i
Call for lowest Price!

Click Here to Jump to Pricing!

Overview:

The Avago SAS 9300 16-port, 12Gb/s SAS HBA family provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures.

The SAS 9300 16-port HBA family is based on the SAS 3008 IO controller, integrating the latest enhancements in SAS and PCI Express® (PCIe) technology. The SAS 9300-16e and SAS 9300-16i support 16 SAS ports operating at 12Gb/s data transfer rates, and can reach close to 2 million IOPS. The 16-port adapter family supports 8 PCIe lanes that comply with the latest PCIe 3.0 specifi cations. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane. Avago Technologies provides a broad suite of industry standard operating system drivers.

Avago Storage by LSI

Avago Technologies products serve four primary target markets: wireless communications, wired infrastructure, enterprise storage, and industrial. Avago Storage by LSI off ers the industry’s broadest portfolio of storage solutions, backed by decades of experience and trusted by the world’s leading server and storage suppliers. Avago provides the building blocks for storage solutions that help customers understand, prioritize, store and protect critical data.

The Avago 12Gb/s SAS portfolio includes MegaRAID® controller cards, HBAs, advanced software options, Syncro® shared DAS solutions and SAS storage ICs, including RAID-on-Chip (ROCs), I/O controllers and expanders.

Fusion-MPT™ Architecture

The Avago SAS HBAs are based on the Fusion-MPT architected SAS controllers, which implements the Fusion-MPT (Message Passing Technology) architecture. Each controller features embedded PowerPC™ processors that help deliver maximum host CPU offl oad. The built-in intelligence enables Avago to publish a single binary OS driver to operate any Fusion-MPT controller or adapter. This architecture helps enable high performance, reduced software development, and faster time to market.

Features and Benefits:

  • 16 external or internal 12Gb/s SAS + SATA ports
  • 8 lanes, PCIe 3.0
  • 2 SAS 3008 12Gb/s SAS + SATA Controllers
  • Supports SSDs, HDDs, and tape drives

Key Advantages

  • High performance with 12Gb/s data transfer rates with full size form factor
  • 8 lanes of PCIe 3.0 provides fast signaling for high bandwidth applications

Specifications:


SAS 9300-16i Host Bus Adapter
I/O Controller Two, SAS 3008/ Fusion MPT 2.5
Port Count 16-port, internal
Connectors Mini-SAS HD
SFF8643 Four (x4)
Storage Connectivity Data Transfer Rates 12Gb/s SAS 3.0 Compliant
SAS Bandwidth Half Duplex (x16 wide bus)
19200 MB/s
Port Configurations 16 ea, x1 ports (individual drives)
4ea, x4 wide ports
2 ea, x8 wide ports
Host Bus x8 lane, PCIe 3.0
PCI Data Burst Transfer Rates Half Duplex
x8, PCIe 3.0, 8000 MB/s
Form Factor Full height
Physical Dimensions 4.4” x 6.1”
Brackets Full Height
Cable Support Passive Copper, Active Optical
LED Management Reference SFF-8485 (SGPIO) compliant
Operating Voltage +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal) 27W
Device Support 1024 Non-RAID devices
Environmental Operating: 0°C to 55°C
Storage: -45°C to 105°C
5 to 90% Non-condensing
Airflow: 200 LFM
MTBF >2,500,000 hours
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD See http://www.lsi.com/support/pages/download-search.aspx for details on versions * The HBA supports Solaris 10 and Oracle® provides a built in driver; installation of an LSI driver is not required. For more information on the Oracle Solaris 10 driver and installation, sign in at the following Oracle link: https://support.oracle.com/ Contact Oracle support for Oracle driver or software support.
Warranty 3 years; with advanced replacement option
Free technical support at http://www.lsi.com/channel/support
