SAS 9211-8i
Call for lowest Price!

Click Here to Jump to Pricing!

Overview:

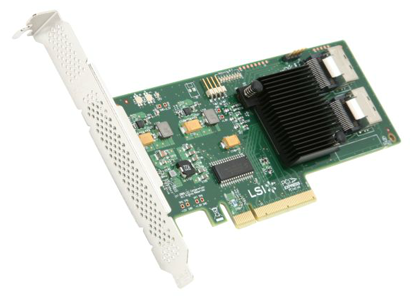

The Avago SAS 9211-8i host bus adapter provides high performance for internal drive connectivity in 1U and 2U servers and workstations. The SAS 9211-8i provides 8 lanes of 6Gb/s SAS and is matched with 8 lanes of PCI Express (PCIe) 2.0 5Gb/s performance to eliminate bottlenecks. Performance is based on the SAS 2008 IO controller that highly integrates the latest enhancements in PCIe and SAS technology. The HBA supports up to 256 SAS or SATA devices.

The SAS 9211-8i has two (x4) internal mini SAS connectors (SFF8087) enabling a low profile solution which provide SAS and SATA data transfer rates of 1.5, 3 and 6Gb/s per lane through automatic speed negotiation that can achieve over 320,000 IOPs. Enhanced features include T-10 Protection Information Model for early detection of and recovery from data corruption, and Spread Spectrum Clocking (SSC) for minimal EMI.

Storage by LSI

Avago Technologies products serve four primary target markets: wireless communications, wired infrastructure, enterprise storage, and industrial. Avago Storage by LSI offers the industry’s broadest portfolio of storage solutions, backed by decades of experience and trusted by the world’s leading server and storage suppliers. Avago provides the building blocks for storage solutions that help customers understand, prioritize, store and protect critical data.

The Avago SAS portfolio includes MegaRAID® controller cards, host bus adapters (HBAs), advanced software options, Syncro® shared DAS solutions and SAS storage ICs, including RAIDon- Chip (ROCs), I/O controllers and expanders.

Fusion-MPT™ Architecture

Fusion-MPT architecture marks the next generation of I/O architecture designed to deliver the highest performance available today while reducing time to market, integration, and certification time. Fusion-MPT devices are high performance, cost-effective protocol controllers that represent the newest system- level integration technology in intelligent I/O processors from Avago.

Features and Benefits:

  • 8 internal 6Gb/s SAS+SATA ports
  • 8 lanes, PCIe 2.0
  • Low profile form factor design
  • Two x4 internal mini-SAS connectors (SFF8087)
  • SAS 2008 6Gb/s SAS+SATA Controller
  • Supports up to 256 SAS or SATA end devices
  • Supports SSDs, HDDs and tape drives
  • Offers Integrated RAID (0, 1, 1E and 10)

Key Advantages

  • Provides state of the art connectivity for servers and appliances with internal storage and the ability to add external storage
  • 8 lanes of PCIe 2.0 provides fast signaling for high-bandwidth applications
  • High performance with 6Gb/s data transfer rates

Specifications:


SAS 9211-8i Host Bus Adapter
I/O Controller SAS2008/ Fusion MPT 2.0
Storage Connectivity ; Data Transfer Rates 8 ports, 6Gb/s SAS 2.0 Compliant
SAS Bandwidth Half Duplex
600 MB/s per lane
Port Configurations 8 ea, x1 ports (individual drives)
2 ea, x4 wide port
Host Bus x8 lane, PCI Express 2.0 compliant
PCI Data Burst Transfer Rates Half Duplex
x8, PCIe, 4000 MB/s
Physical Dimensions Low Profile (2.6” x 6.6”)
Connectors Two mini-SAS internal connectors (SFF8087)
Brackets Full height and low profile
Cable Support Passive Copper
Host Bus Type x8 lane, PCI Express 2.0
PCI Card Type 3.3 V Add-in Card
Operating Voltage +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal) 7W typical (Airflow min 200 LFM)
Device Support 256 Non-RAID SAS/SATA devices
Integrated RAID (IR)   14 Spread across 2 volumes
RAID 0: 10 per volume
RAID 1: 2 per volume plus hot spare
RAID 1E: 10 per volume
RAID 10: 10 per volume
Environmental Operating Storage
0°C to 55°C
5 to 90% Non-condensing
-45°C to 105°C
5 to 90% Non-condensing
MTBF >2,000,000 Hours
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware
See http://www.lsi.com/support/pages/download-search.aspx for details on versions
Warranty 3 years; with advanced replacement option
Free technical support at http://www.lsi.com/support

Documentation:

Download the Avago SAS 9211-8i Product Brief (PDF).
