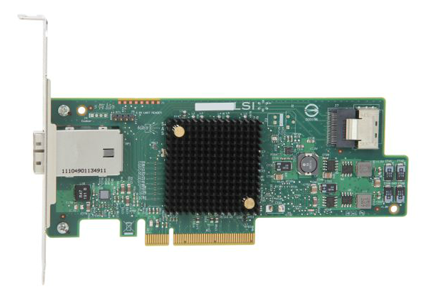

Avago SAS 9207-4i4e
Satisfy internal storage needs while providing a growth path to external storage

Avago SAS 9207-4i4e

Avago Server Storage Products
Avago Host Bus Adapters
SAS 9207-4i4e
Call for lowest Price!

Click Here to Jump to Pricing!

Overview:

LSI SAS 9207-4i4e host bus adapter provides a high performance solution for internal and external storage connections in 1U/2U servers and workstations. The LSI SAS 9207-4i4e provides 8 lanes of 6Gb/s SAS and is matched with 8 lanes of PCI Express 3.0, 8Gb/s performance to eliminate any performance bottlenecks. Performance is based on the LSISAS2308 6Gb/s SAS IO Controller that highly integrates the latest enhancements in PCI Express and SAS technology.

The LSI SAS 9207-4i4e has one (x4) internal mini-SAS connector (SFF8087), one (x4) external mini- SAS connector (SFF8088), and provides SAS and SATA data transfer rates of 1.5, 3, and 6Gb/s per lane and can achieve over 650K IOPs.

SAS Leadership

LSI offers the broadest SAS product portfolio in the industry with true end-to-end solutions including controllers, expanders, active-active multiplexers, ROCs, host bus adapters, RAID solutions, and external storage. LSI’s proven SAS core has completed extensive stress and interoperability testing resulting in the industry’s most robust, interoperable solution.

LSI has supplied leading edge serial technology to systems throughout the world for over seven generations, making LSI the most experienced enabler of serial interconnect for storage in the world. Integrators can be assured that their LSI adapter is providing the most advanced and robust serial technology available.

Fusion-MPT™ Architecture

The LSI SAS host bus adapters are based on the Fusion MPT™ architected SAS controllers, which implements LSI’s Fusion-MPT (Message Passing Technology) architecture. Each controller features embedded PowerPC™ processors that deliver maximum host CPU offload. The built-in intelligence enables LSI to publish a single binary OS driver to operate any Fusion MPT controller or adapter. The architecture enables high performance, reduced software development, and faster time to market.

Features and Benefits:

  • 4 Internal and 4 external 6Gb/s SAS+SATA ports
  • 8 lanes, PCI Express 3.0
  • Low profile form factor design
  • One x4 mini-SAS internal connector (SFF8087)
  • One x4 mini-SAS external connector (SFF8088)
  • LSISAS2308 6Gb/s SAS+SATA Controller
  • Supports up to 256 SAS or SATA end devices
  • Supports SSDs, HDDs and tape drives

Key Advantages

  • Provides state of the art connectivity for servers and appliances with internal storage and the ability to add external storage
  • 8 lanes of PCI Express 3.0 provides fast signaling for high-bandwidth applications
  • High performance with 6Gb/s data transfer rates

Specifications:


SAS 9207-4i4e Host Bus Adapter
I/O Controller LSI SAS2308/ Fusion MPT 2.0
Storage Connectivity ; Data Transfer Rates 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth Half Duplex
600 MB/s per lane
Port Configurations 4 ea, x1 internal ports (individual drives)
4 ea, x1 external ports
1ea, x4 external wide port
Host Bus x8 lane, PCI Express 3.0 compliant
PCI Data Burst Transfer Rates Half Duplex
x8, PCIe, 8000 MB/s
Physical Dimensions Low Profile (2.6” x 6.6”)
Connectors One x4 internal mini-SAS (SFF8087), One x4 external mini-SAS (SFF8088)
Brackets Full height and low profile
Cable Support Passive Copper
PCI Card Type 3.3 V Add-in Card
Operating Voltage +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal) 9.8W
Device Support 256 SAS+SATA devices
Environmental Operating Storage
0°C to 55°C
5 to 90% Non-condensing
-45°C to 105°C
5 to 90% Non-condensing
MTBF >2,000,000 Hours
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See http://www.lsi.com/channel/ChannelDownloads for details on versions and support
Warranty 3 years; with advanced replacement option
Free technical support at http://www.lsi.com/channel/support

Documentation:

Download the Avago SAS 9207-4i4e Product Brief (PDF).
